Second Story Deck

Click on a link below to go to the section you wish to view:

| Proposed Schematic

Scope of work: Design for a Second Story Deck per client sketch

April 27, 2021

Please check the floor plan and section below- it is what will be calculated- let me know if anything wrong. Also please check the perspective, let me know if we are doing the decorative beam shown.....

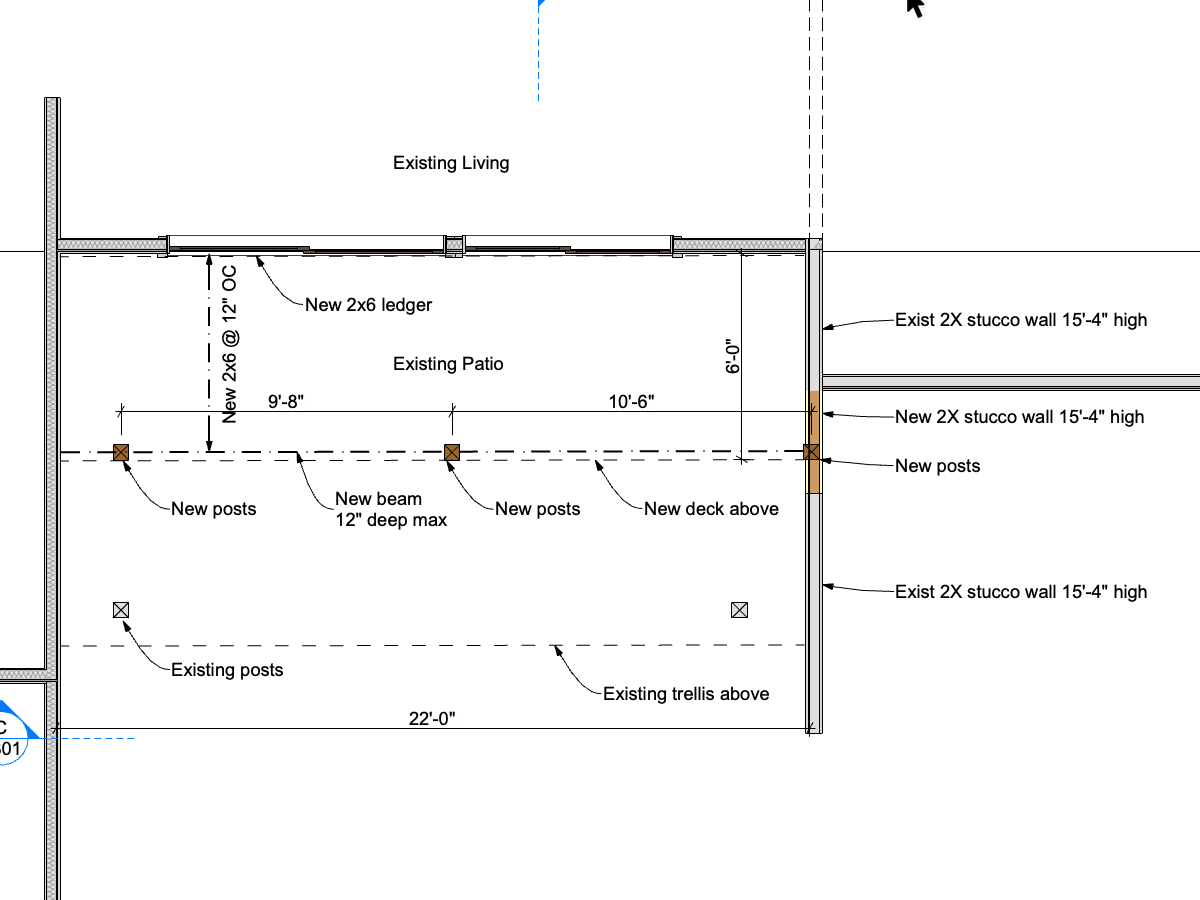

LOWER FLOOR PLAN

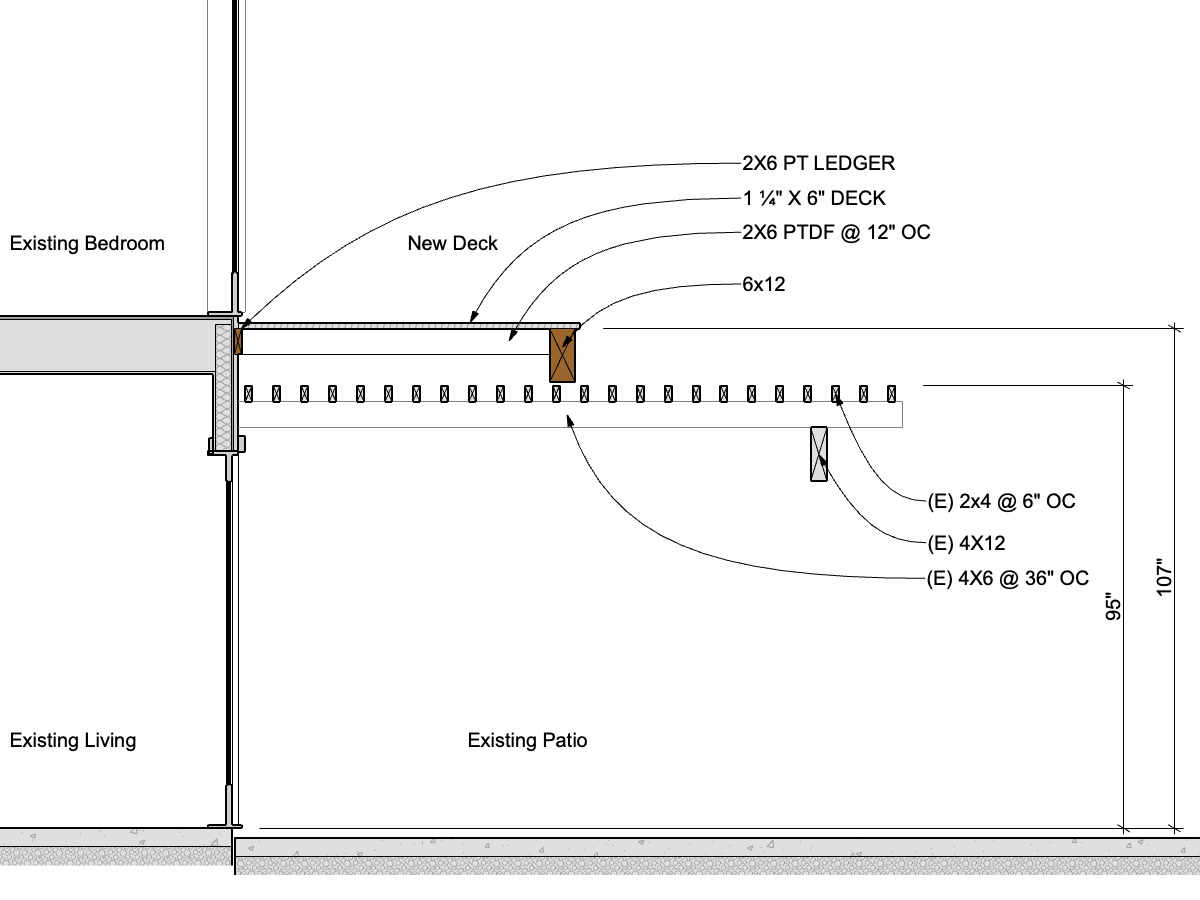

SECTION

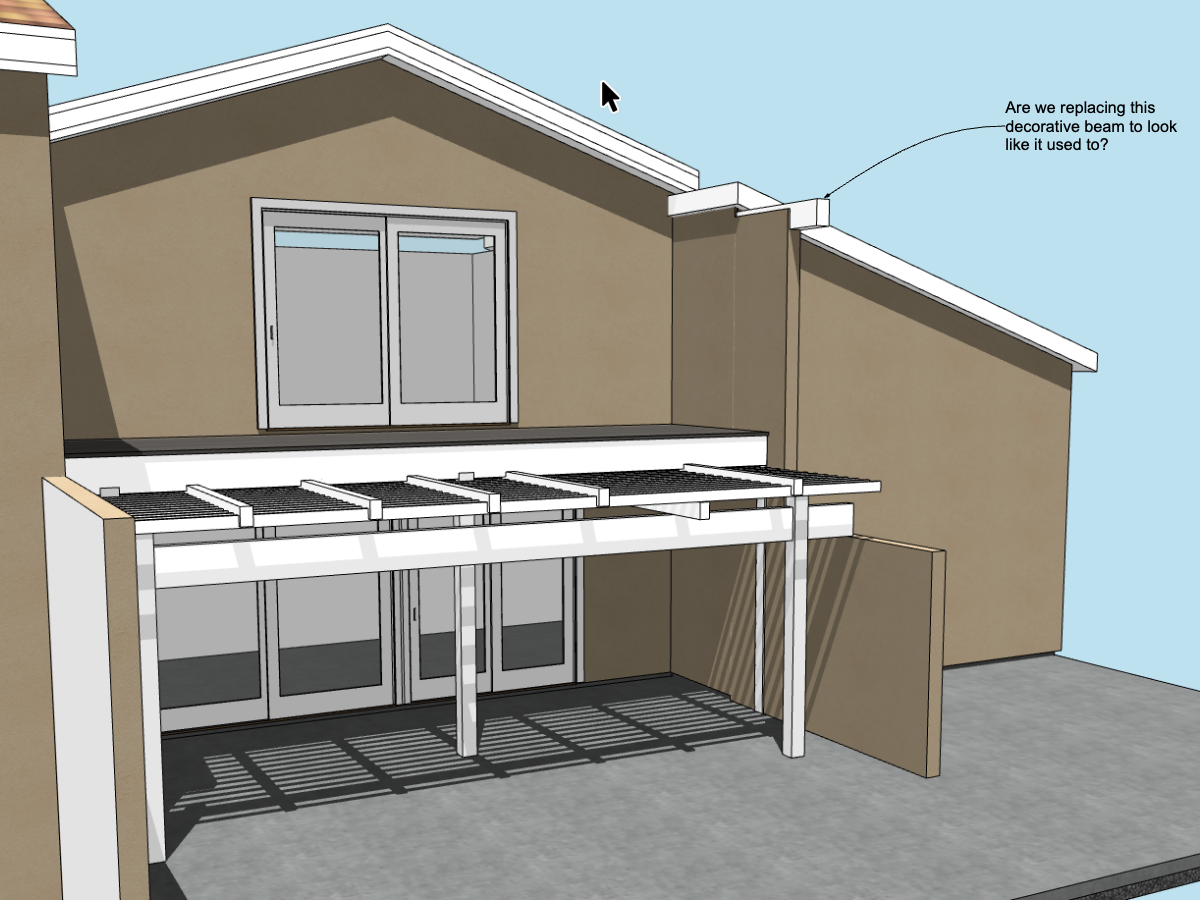

PERSPECTIVE

April 23, 2021

Below are 2 perspectives of the project. I have left out guardrail for now, for clarity. The last image is a section of your project- please look at it carefully and let me know what the sizes and dimensions are and if they are correct .....

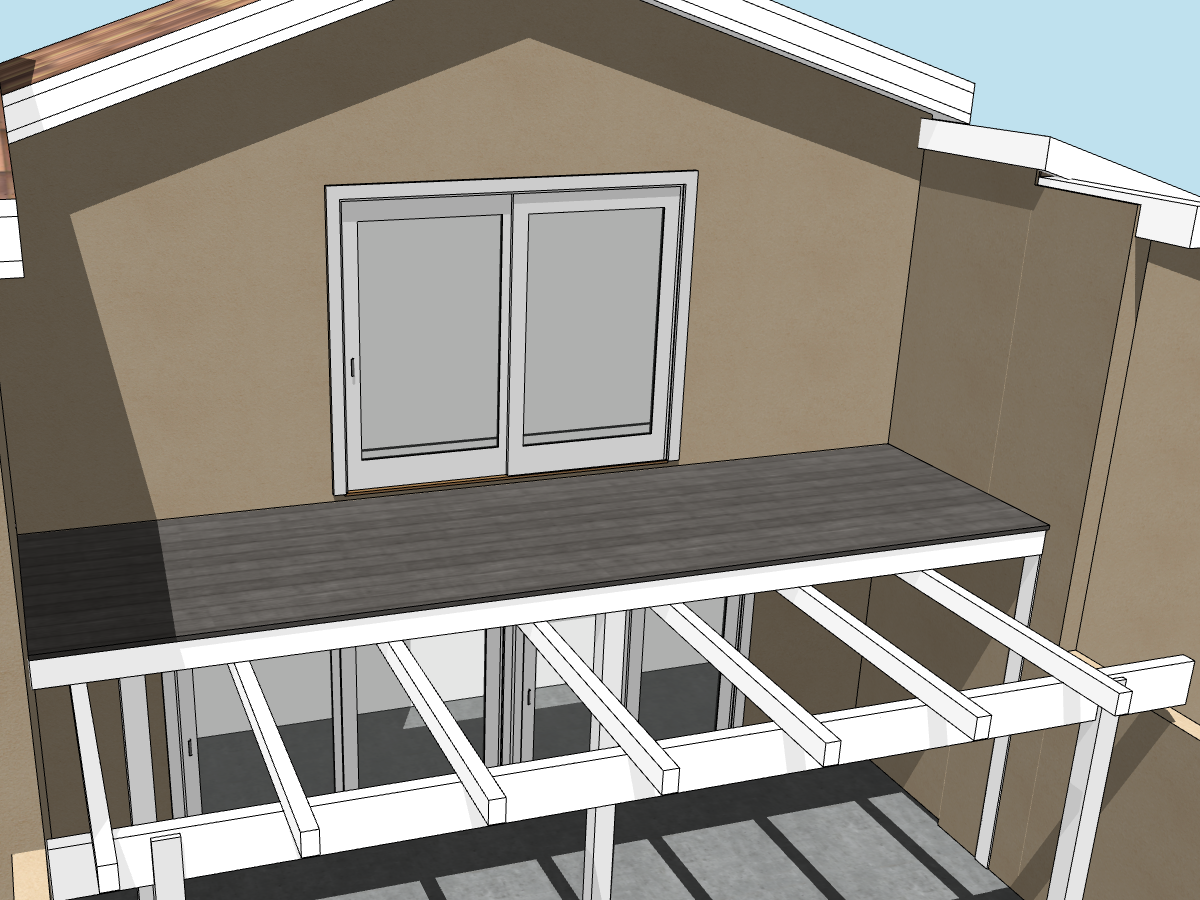

PERSPECTIVE

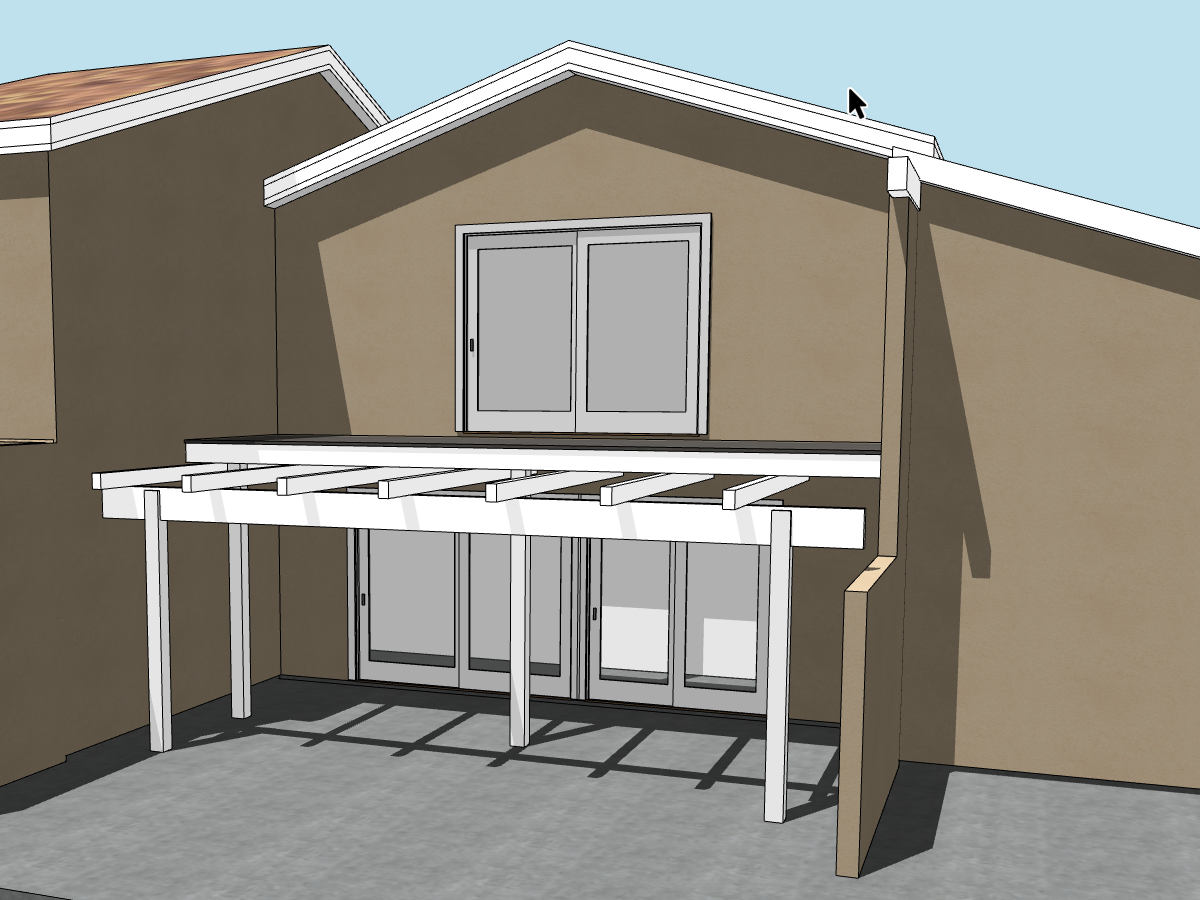

PERSPECTIVE

UPPER FLOOR PLAN

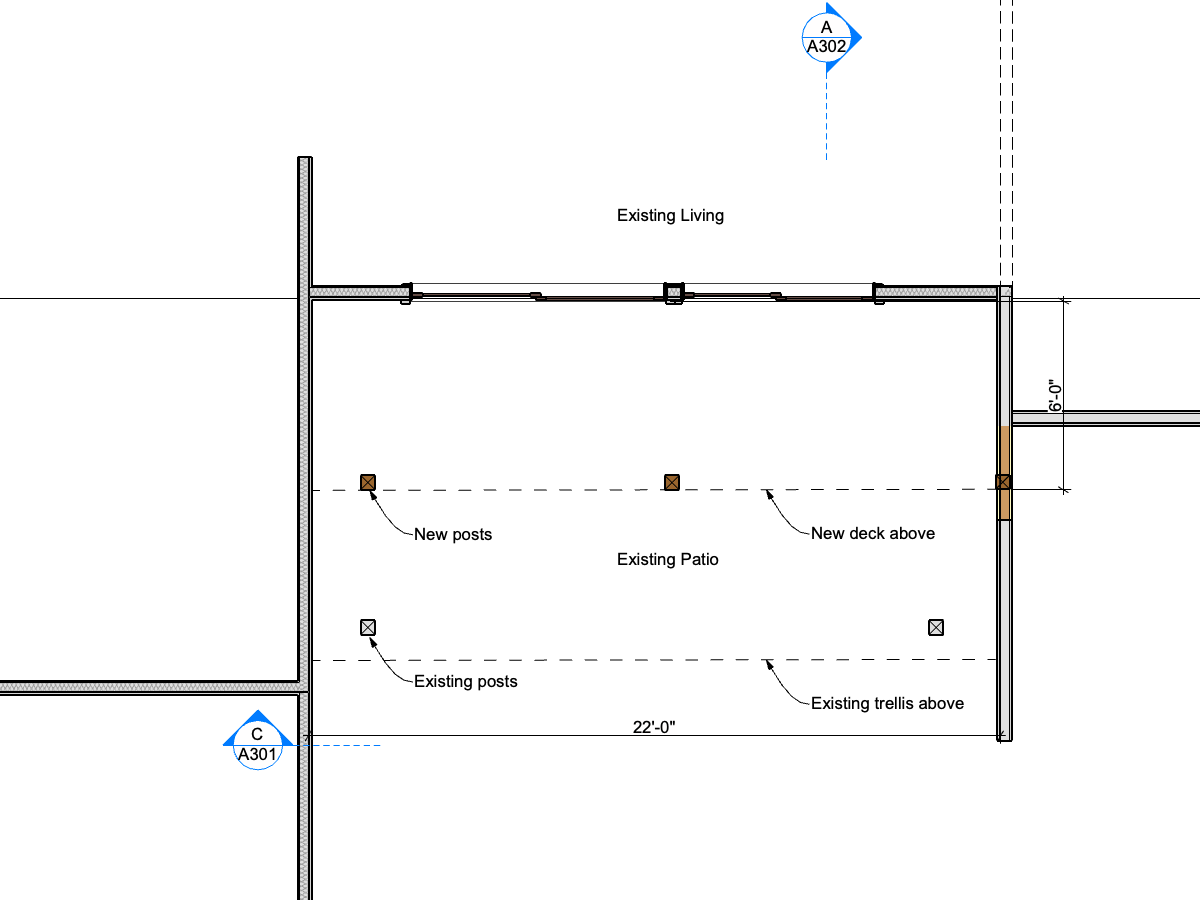

LOWER FLOOR PLAN

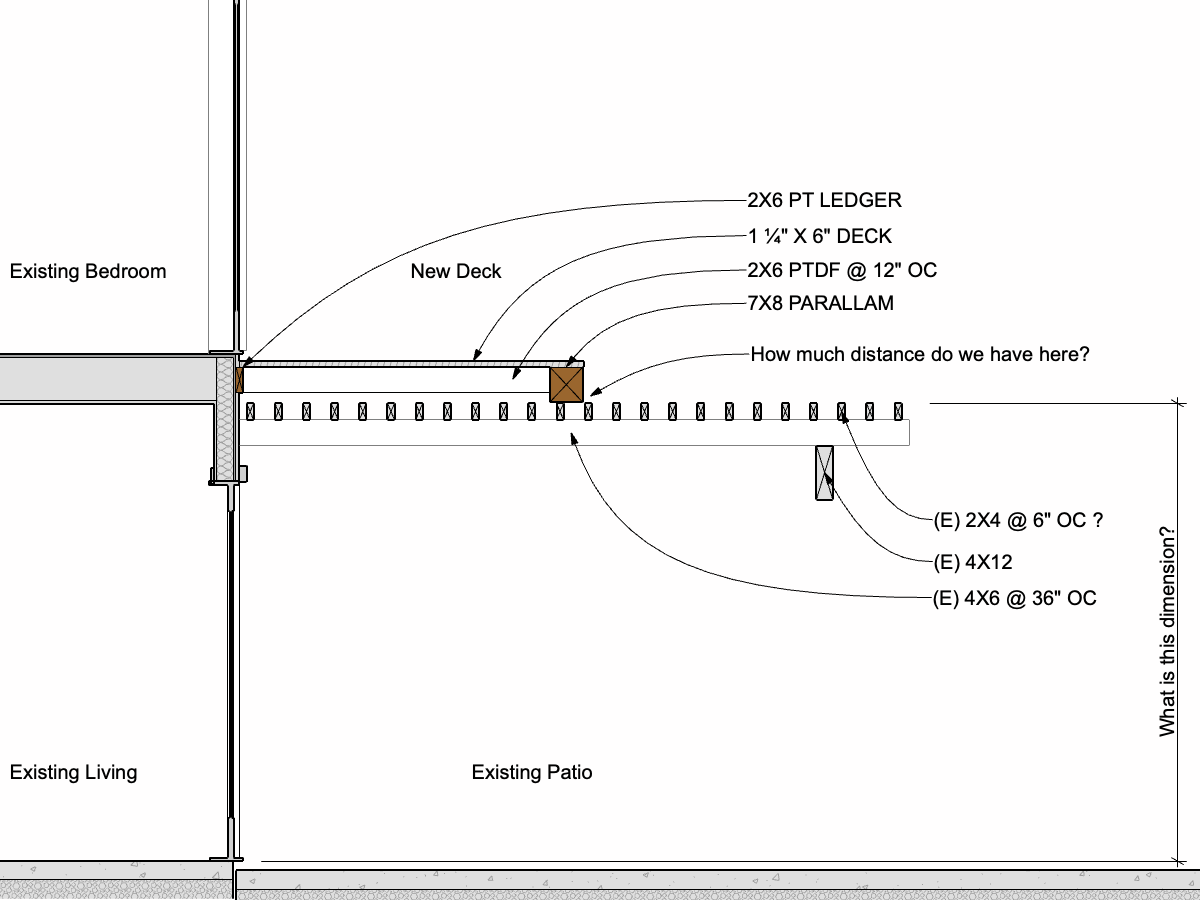

SECTION

The images presented above are conceptual in nature for the purpose of developing the design. They are not meant to depict the exact materials and arrangements of the built project.
